PIANELLA

PIANELLA

And why not, actually?

From 1.990 €

Why Pianella?

Paula and Paoletta are super capable off-road. You can head into some pretty angry little singletracks, no worries.

Same for bikepacking and ultra-long distance: our two gravel bikes more than do the job.

But still.

If you're looking for a bike that's even more at home on any terrain and can take you to the end of the world loaded like a mule, we've got something for you: it's Pianella.

Build us a post-apocalyptic bike, pretty please

MASSACAN PIANELLA FRAME KIT 1.990 €
What you're ordering
Frame only
The bare frame, in your size and your finish.
Frame kit
The frame and the fork of your choice.
Complete bike
Built and dialled in by us, ready to ride.
Size
Saffron Yellow
Build / Assembly
No assembly
I'll build everything myself. And don't come crying if you can't do it — you wanted to play the big shot, you sort it out.
Bottom bracket + cables/hoses
T47 x 92mm bottom bracket installed, frame cables and hoses pre-installed.

What makes Pianella great?

  • The material

    A steel frame?

    Aluminium is still our material of choice, and steel wasn't really our cup of tea. But only fools never change their minds — and for a bike designed for the most extreme conditions, it was the obvious pick.

  • The fork

    What about the fork?

    We'd rather leave it up to you. Pianella is versatile enough to take a rigid fork or a suspension fork with 100 to 120 mm of travel, depending on the bike you have in mind.

  • How it's made

    How is it made?

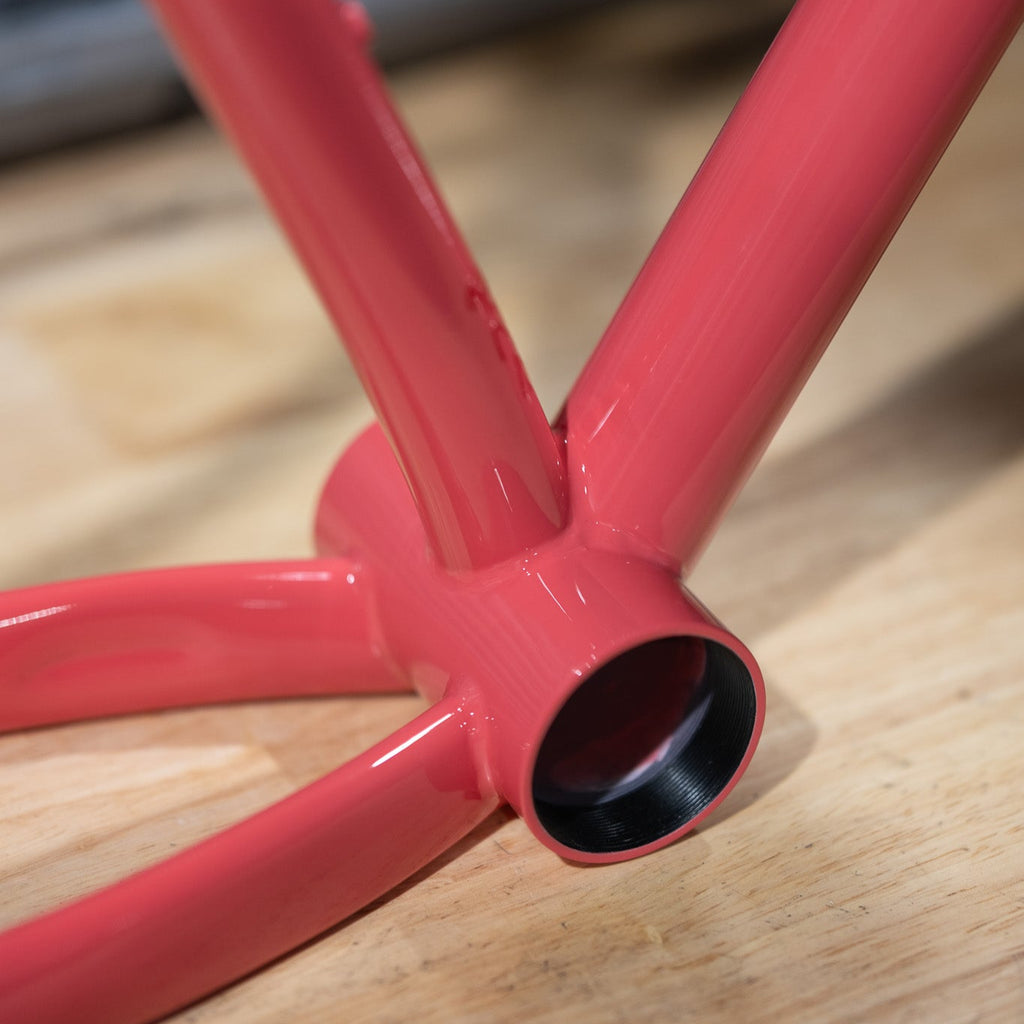

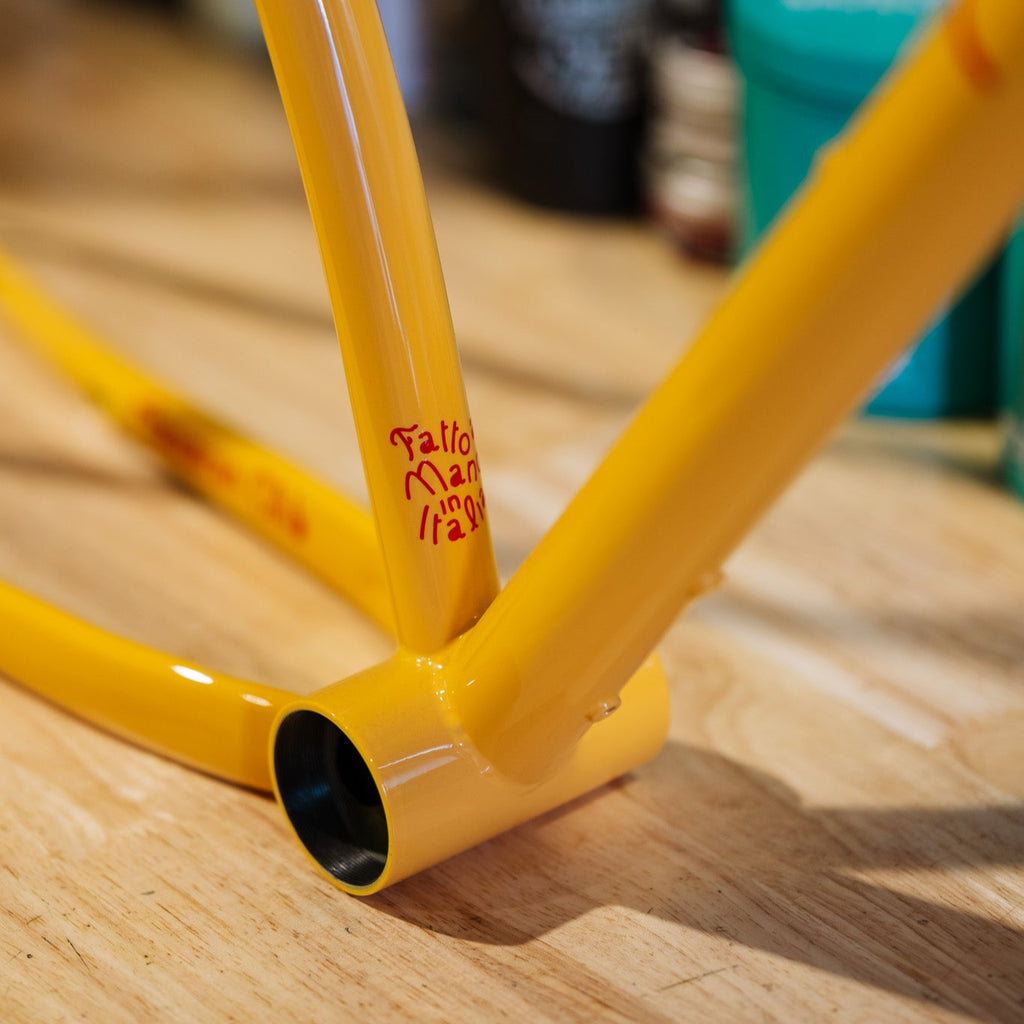

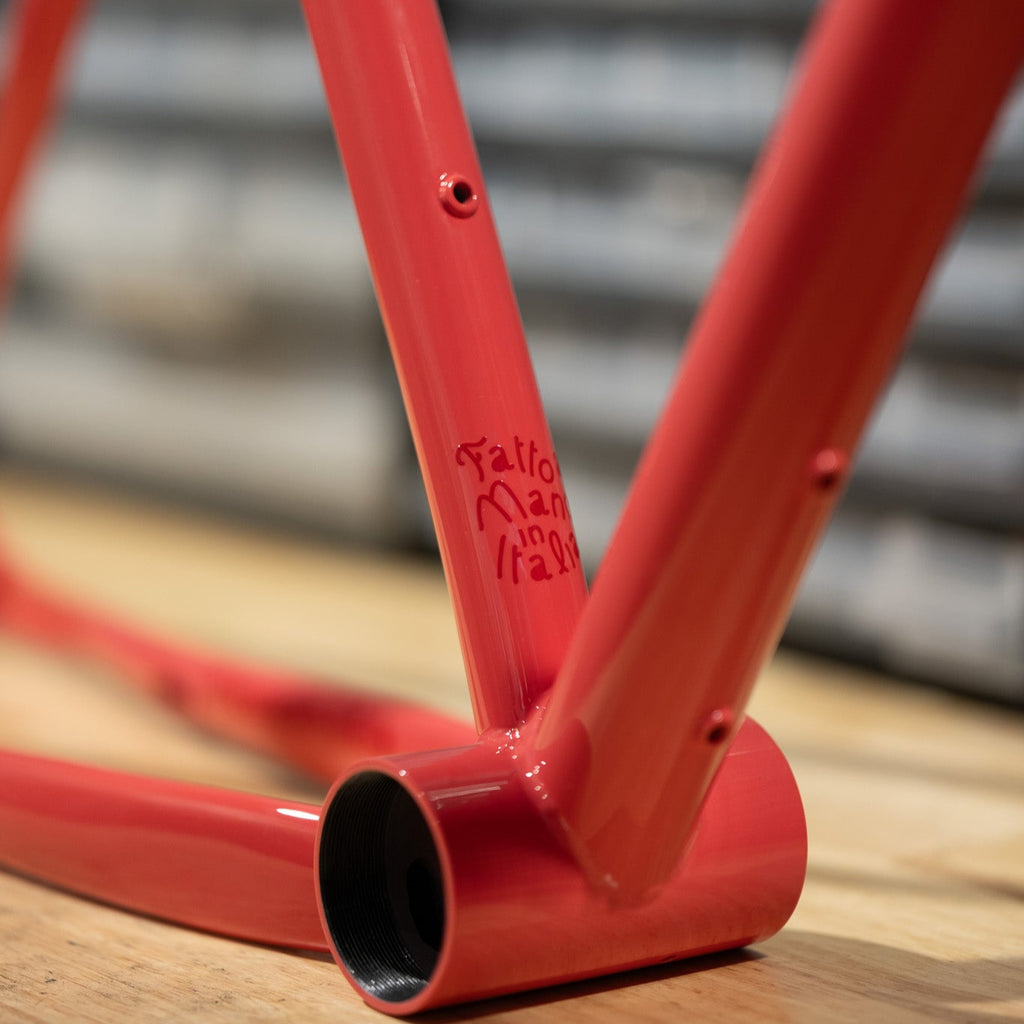

    Still in Italy, still by our framebuilder. Columbus Zona and Life tubes depending on the section, T47 bottom bracket: no stiffness worries today, no durability worries tomorrow.

  • Custom fit

    Can I customise it?

    Yep, everything. Four standard sizes, and a custom geometry if you want one — at no extra cost. A custom colour too. That's just how we roll at Massacan.

Geometry and specs

The measurements, at 100 mm

SizeStack [mm]Reach [mm]Seat tube [mm]Top tube [mm]Head tube [mm]BB drop [mm]Chainstay [mm]Fork A2C [mm]Offset [mm]Seat angle [°]Head angle [°]
S576432415 - 39559295604354864574.567.0
M586454455 - 435616105604354864574.567.0
L596476495 - 475641115604354864574.567.0
XL614498535 - 515668135604354864574.567.0

The forks' axle-to-crown measurements are:

  • Columbus rigid: 470 mm
  • SID SL 100 mm, at 20% sag: 486 mm
  • SID 110 mm, at 20% sag: 499 mm
  • SID 120 mm, at 20% sag: 507 mm

The measurements with preserved angles

If you already know you'll only ever ride rigid or only at 120, we can even tweak the frame so the angles are spot-on. But by default, Pianella is designed to be at its best at 100 mm.

SizeStack [mm]Reach [mm]Seat tube [mm]Top tube [mm]BB drop [mm]Chainstay [mm]Offset [mm]Seat angle [°]Head angle [°]Head tube rigidHead tube 100Head tube 110Head tube 120
S576432415 - 395592604354574,567,0111958274
M586454455 - 435616604354574,567,01211059284
L596476495 - 475641604354574,567,013111510294
XL614498535 - 515668604354574,567,0151135122114
Geometry and specs

What size are you?

Your position

This is a guideline, not a bike fit. Two people of the same height don't ride the same bike: torso length, flexibility, habits and terrain matter as much as the centimetres. If in doubt, drop us a line — and if no standard size fits you, custom geometry comes at no extra cost.

Technical specs

Frame

Material : Columbus Zona and Life steel

Head tube diameter : 1"-1/8 top and 1"-1/2 bottom

Seatpost clamp : 31.8 mm

Seatpost diameter : 27.2 mm

Bottom bracket compatibility : T47 x 92 mm

Rear axle spacing : 148 mm

Bottle cage mounts : 3

Tyre clearance

Up to 29" - 2.4"

Brake compatibility

Flat Mount and Post Mount via included adapters

Weight

Frame : 2.3 kg in size M

Maximum rider weight : 150 kg

Mega sexy photos of Pianella

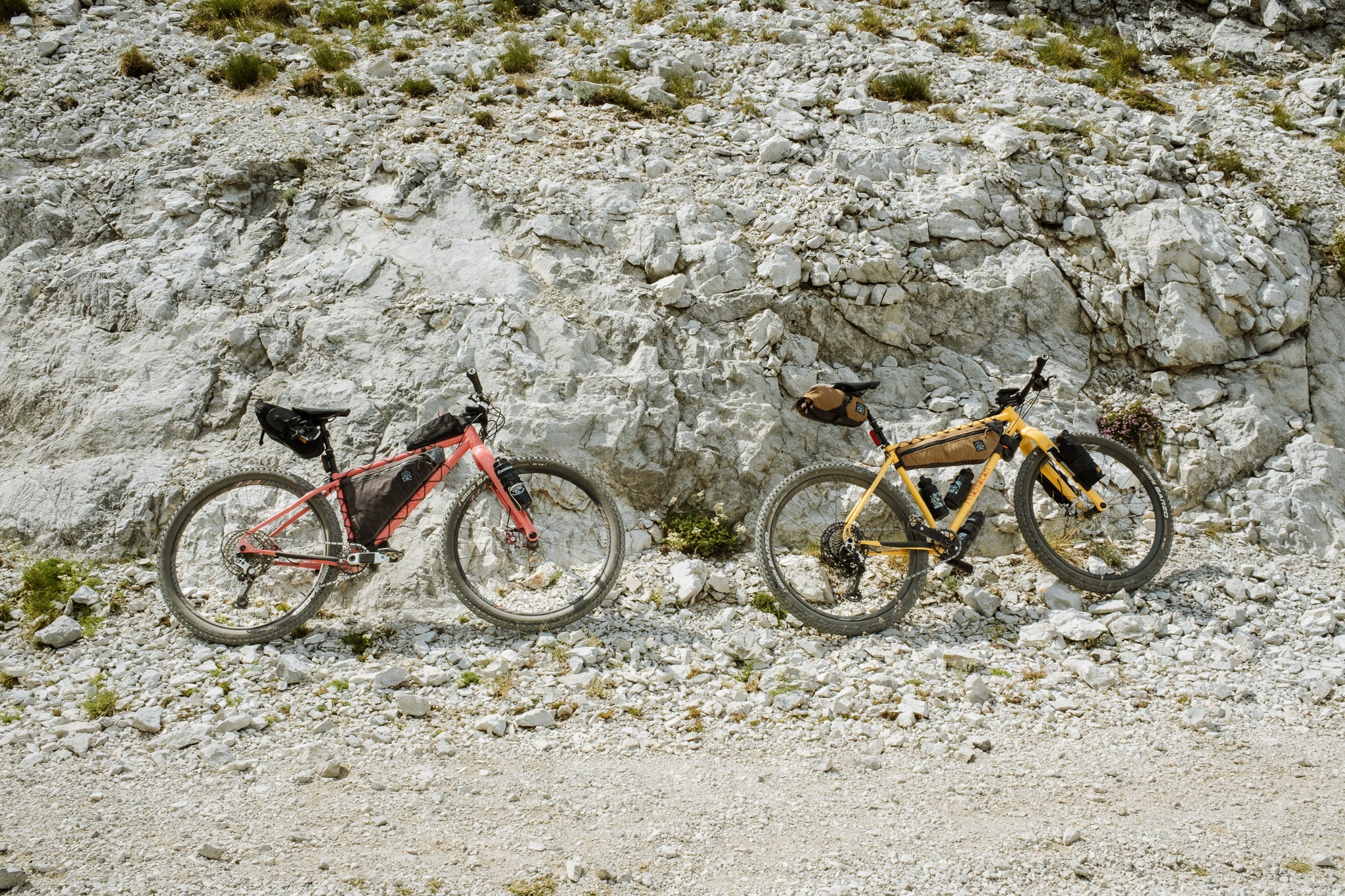

Dscf3297

Want to know more about Pianella?

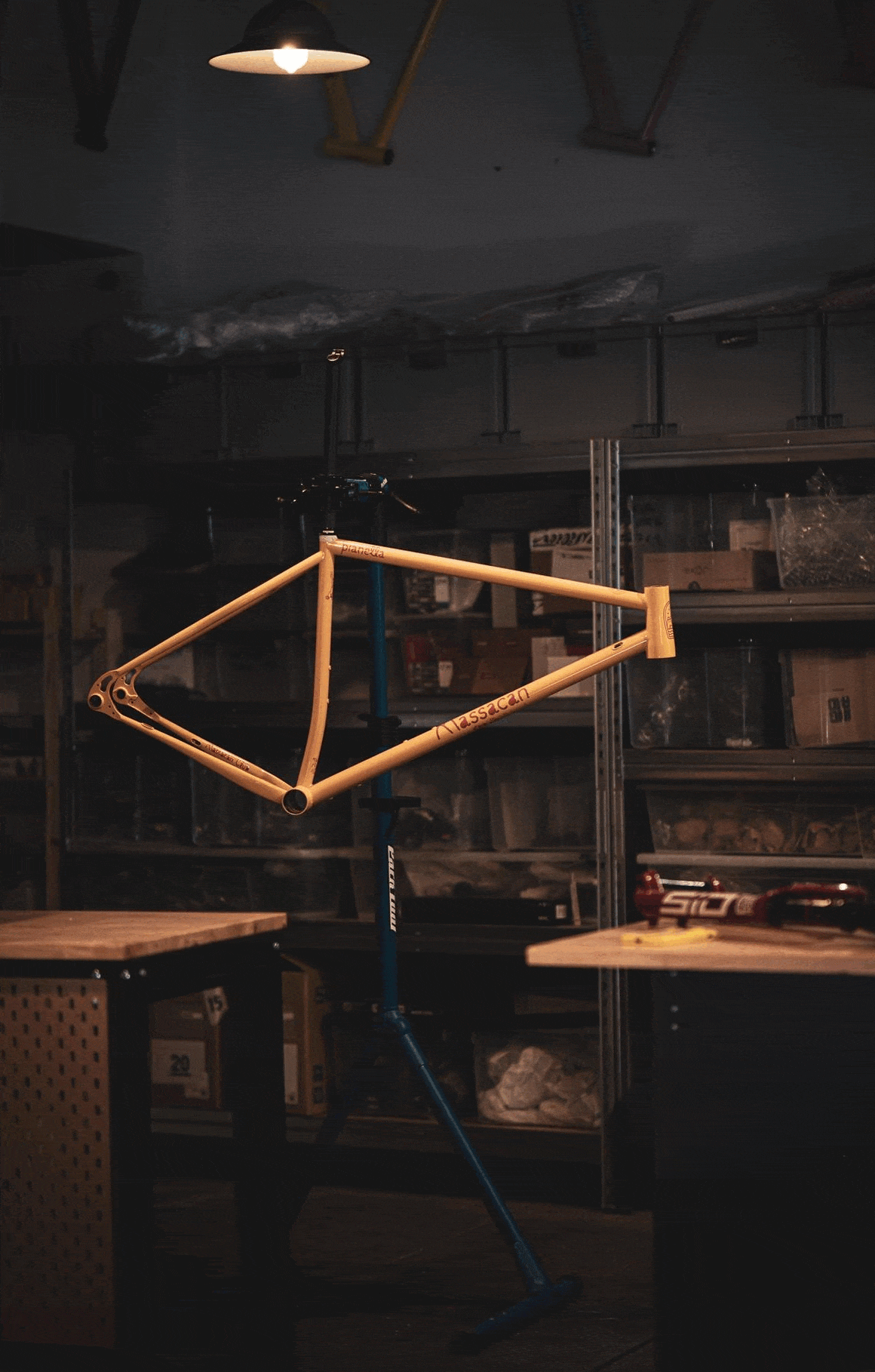

Ezgif 5490f13cb657ab
Whatsapp image 2025 06 27 at 23

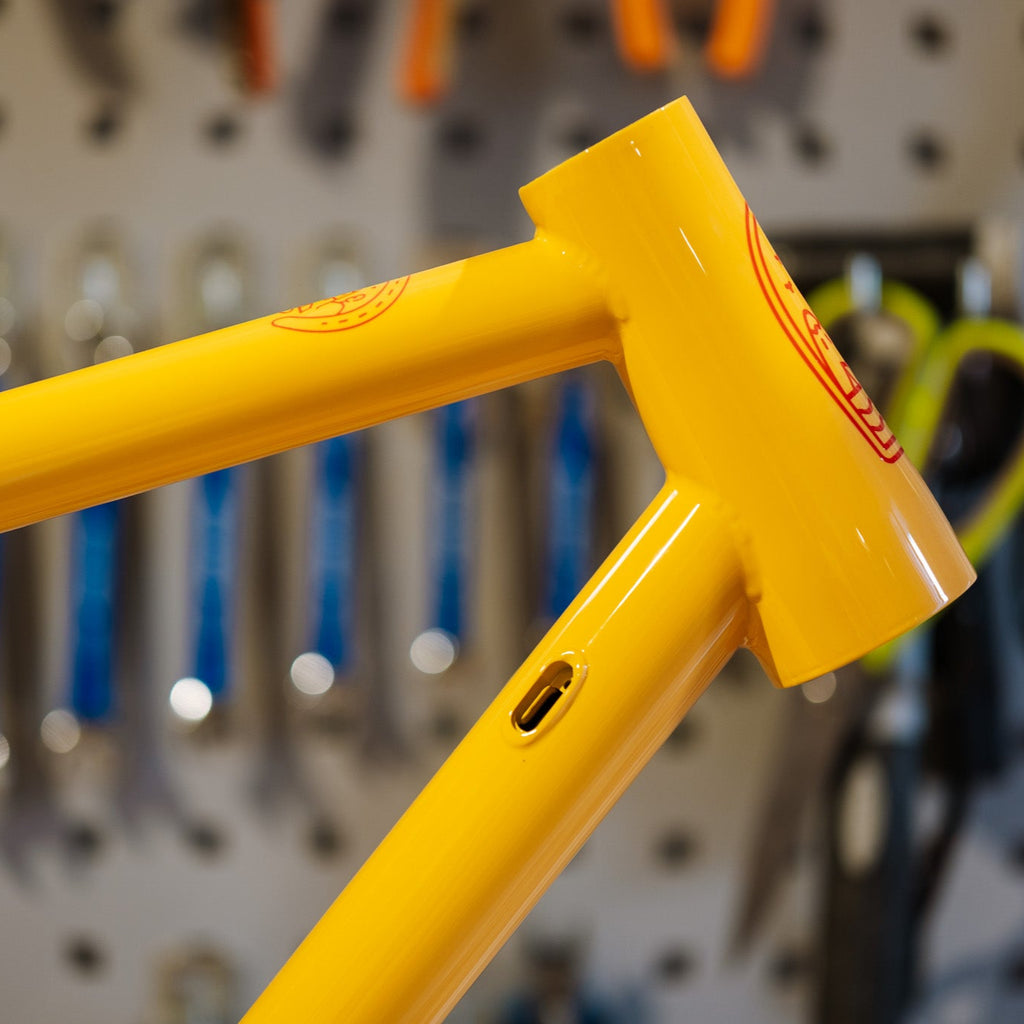

Semi-integration Semi-integration

Semi-integration

The right recipe for easy maintenance and not too much interaction with the bags.

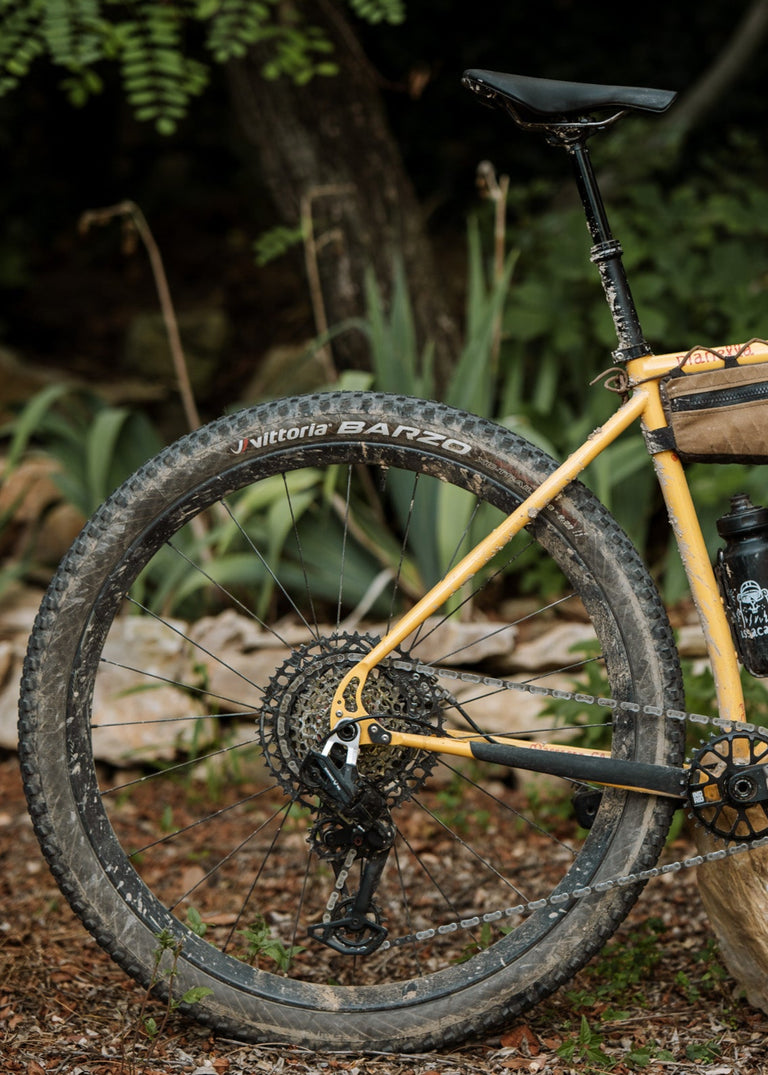

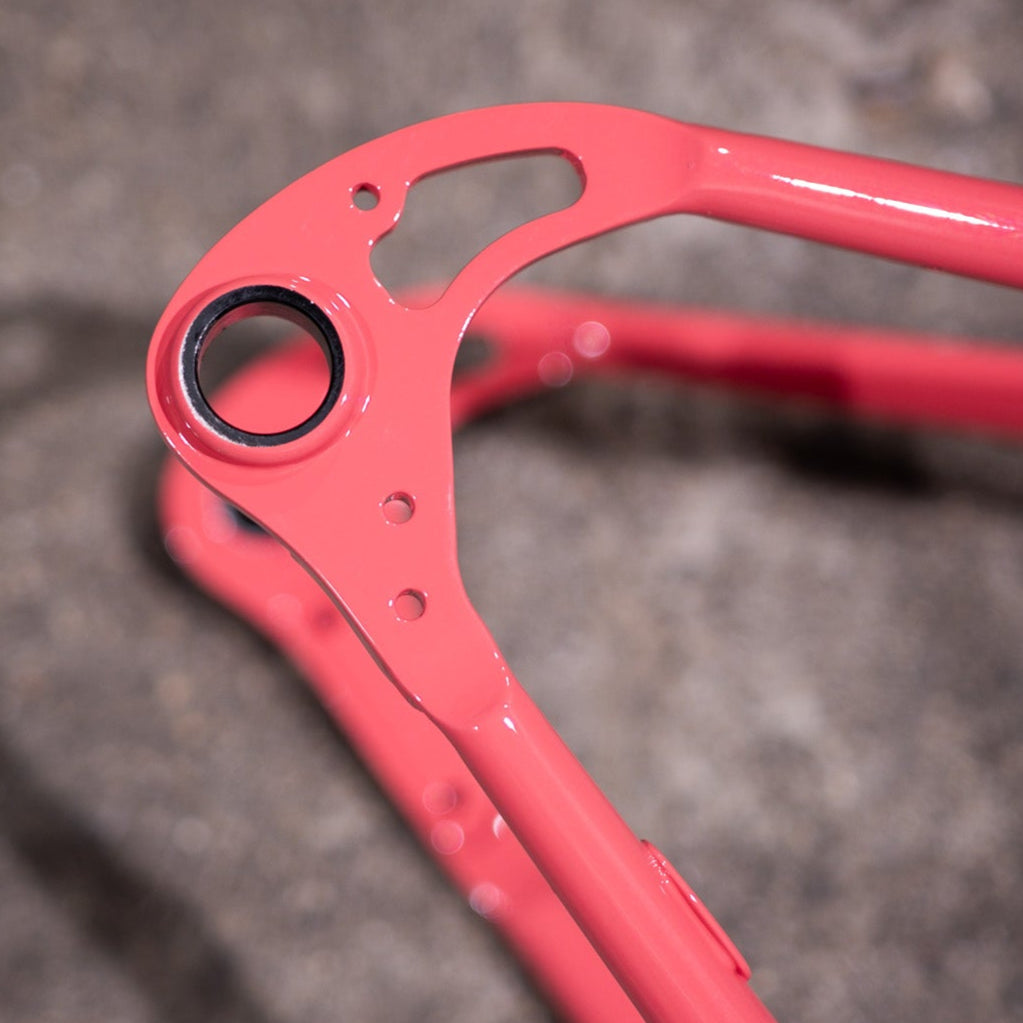

UDH derailleur hanger UDH derailleur hanger

UDH derailleur hanger

"Universal" it says on it!

Loaded like a mule Loaded like a mule

Loaded like a mule

It lives up to its name!

Is steel strong? Is steel strong?

Is steel strong?

Steel is real!

Our frames are tested with a lot of dedication but little technique.

Pianella: 1 - Radius: 0
